PREMIUM high-performance diamond and CBN tools to work on CNC machines and tool grinders.

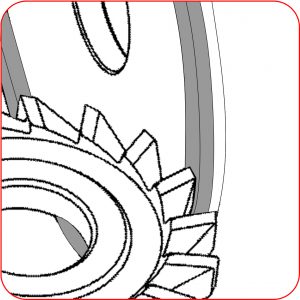

6А2. FLAT RECESSED GRINDING WHEELS

6А2 D*W*X*T*H*α

Application:

Sharpening of back surface of the tools

Used for sharpening and finishing of multipoint  tools with straight and spiral teeth to work on back surface of cutters, drills and other.



Example of an order of  a grinding wheel 6A2 (catalog number3-0088), parameters 125-5(2,5+2,5)-10-24-32 with diamond grit size D46/D126, with resin bond: 3-0088 6A2 125-5(2,5+2,5)-10-24-32 D46/D126 B9-00 PREMIUM

The plant produces the above- mentioned shapes and dimensions with Cubic Boron Nitride (CBN).

Example of an order of  a grinding wheel 6A2 (catalog number3-0088), parameters 125-5(2,5+2,5)-10-24-32 with CBN gritsize B46/B126, with resin bond: 3-0088 6A2 125-5(2,5+2,5)-10-24-32 B46/B126 B9-00 PREMIUM



Attention: POLTAVA DIAMOND TOOLS produces other sizes of the given shape of diamond tool.
