PREMIUM high-performance diamond and CBN tools to work on CNC machines and tool grinders.

12А2-20. DISH GRINDING WHEELS

12А2-20 D*T*X*W*H

Application:

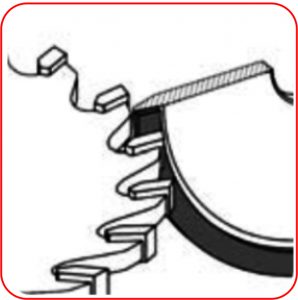

Face sharpening

Used for sharpening and finishing of face surfaces of reamer teeth, mills, hob cutters, circular saw teeth, drawing dies and other tools made of tungsten carbide.



Example of an order fora dish wheel 12A2-20 (catalog number 5-0014), parameters 150-18-2-10-51 with diamond grit size D126, with resin bond: 5-0014 12A2-20 150-18-2-10-51 D126 B9-00 PREMIUM

The plant produces the above-mentioned shapes and dimensions with Cubic Boron Nitride (CBN).

Example of an order of CBN wheel 12A2-20 (catalog number 5-0014), parameters 150-18-2-10-51, with CBN grit size B126,with resin bond: 5-0014 12A2-20 150-18-2-10-51 B126 B9-00 PREMIUM



Attention: POLTAVA DIAMOND TOOLS produces other sizes of the given shape of diamond tool.
